ZXZ Advertising CNC Cutting Machine for Signage and Display Boards

High-Precision Advertising CNC Cutting Machine for Signage & Graphic Industry

The modern advertising and signage industry processes a vast array of substrates, including KT boards, PVC foam sheets (Sintra), acrylic, corrugated paper, vinyl stickers, and lightbox fabrics. Traditional manual cutting or physical die-cutting often suffers from slow lead times, high tooling costs, and poor cut precision on complex custom shapes. Furthermore, traditional CO2 laser cutters frequently burn, discolor, or release toxic fumes when processing PVC and foam-based materials.

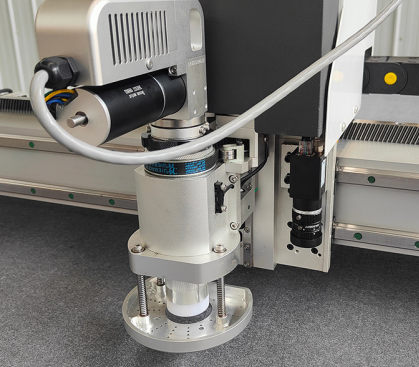

The ZXZ Advertising CNC Cutting Machine (digital oscillating knife cutter) provides a clean, eco-friendly blade cutting solution. Equipped with a high-frequency vibration knife system and precision CCD optical camera registration, it enables die-free blade cutting of any custom graphics directly from digital files (±0.2mm accuracy). Delivering high cutting speeds up to 1500mm/s with zero thermal deformation, sign shops can handle short-run custom orders efficiently while slashing material waste by up to 95% using integrated auto-nesting software.

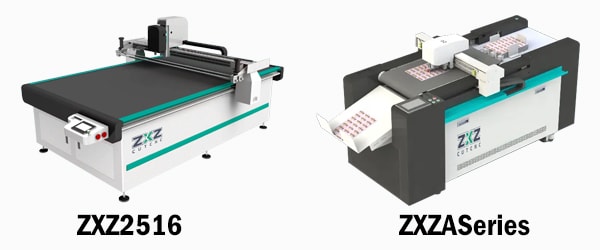

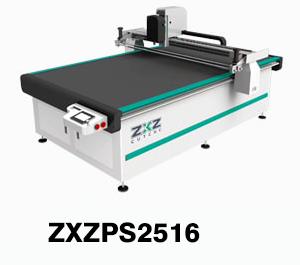

Recommended Advertising CNC Cutter Models

Specification	Standard Industrial Format View Product >>	Compact Flatbed Desktop View Product >>
Cutting Area	2500mm x 1600mm (Customizable)	600mm x 800mm
Max Cutting Speed	Up to 1500mm/s
Cutting Precision	±0.2mm (Varies depending on material density)
Tool Configurations	Oscillating Knife Tool (EOT) / Creasing Wheel / Kiss-Cut Tool / V-Cut Tool / CCD Registration Camera / High-Speed Milling Router Spindle
Countertop Type	Conveyor Auto-Feeding System / Static Flatbed Table
Material Fixation Method	Aviation Aluminum Honeycomb Vacuum Bed with Multi-Zone Sectional Suction
Cutting Thickness	≤ 50mm	2mm – 5mm
Rated Power	9.0 KW	3.2 KW
Drive & Motor System	High-Precision Servo Motors (Delta / Dorna) / Linear Guide Rails / Helical Rack Drive
Positioning Accuracy	0.05mm
Supported Formats	DXF, PLT, AI, PDF, DLT, OLT, CF2, XML
Working Voltage	220V / 380V ± 10%, 50Hz/60Hz	220V / 380V ± 10%, 50Hz/60Hz

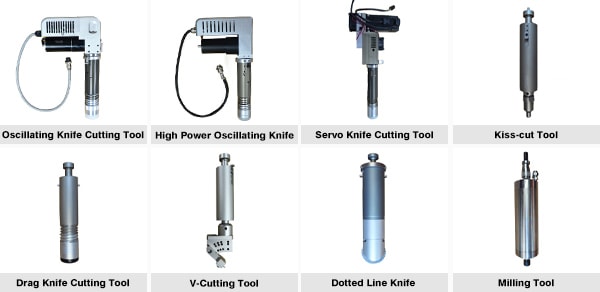

Modular Cutting Tools for Advertising Substrates

Equipped with versatile interchangeable tool modules, our advertising CNC router & digital knife system handles multiple graphic finishing operations in a single workflow: full-cutting, kiss-cutting, creasing, V-grooving, and router milling.

Modular Tool Holders for Advertising CNC Cutting Machine

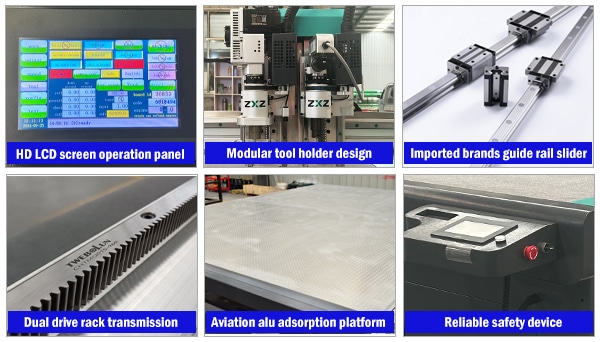

Core Advantages of ZXZ Digital Advertising Cutter

Multifunctional Control System

Integrates multiple knife cutting modes with real-time speed and depth parameter adjustment for higher operational efficiency.

Aviation Aluminum Vacuum Adsorption Platform

Aviation Aluminum Vacuum Bed

Strong sectional vacuum suction holds soft or lightweight boards firm, eliminating vibration even at high cutting speeds.

Quick-Change Tool Modules

Supports versatile tool combinations to process both flexible media and rigid display boards seamlessly on the same machine.

Precision Linear Square Rails

Heavy-duty linear motion guides ensure ultra-smooth axis operation, high rigidity, and exceptional long-term reliability.

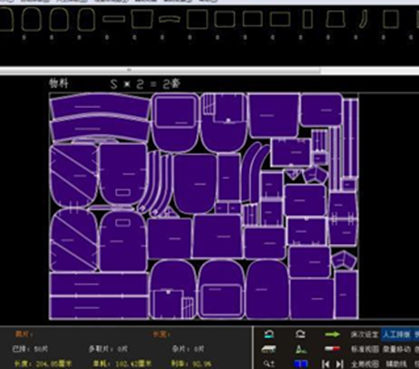

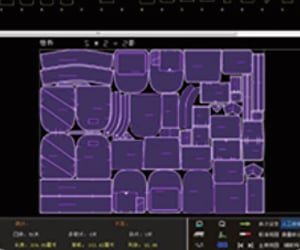

Smart Auto-Nesting Software

Automatically optimizes pattern placement to minimize raw material waste, boosting substrate utilization rates up to 95%.

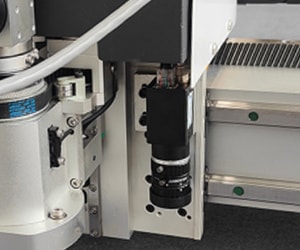

CCD Optical Camera Alignment

High-definition CCD vision camera automatically registers printed optical marks to execute precise contour knife cutting.

Industry Applications & Compatible Substrates

Supported Advertising Substrates:

Soft & Semi-Rigid Boards: KT Board, PVC Foam Board (Sintra Board), Corrugated Cardboard, Honeycomb Board.
Rigid Substrates: Acrylic Sheet / PMMA, PVC Sheets.
Flexible & Adhesive Media: Car Vinyl Sheeting, Reflective Sheeting, Magnetic Film, Self-Adhesive Decals, EVA Foam.
Banner & Lightbox Media: Lightbox Fabric, PVC Banner Cloth, Canvas, Soft Film Display Graphics.

Key Technical Benefits for Sign Shops:

High-Precision Contour Cutting: Accurately cuts intricate logos, custom-shaped lettering, and POP graphic standees.
Burr-Free Edge Finish: Cold blade vibration cutting leaves clean edges with zero smoke, discoloration, or burnt odor on PVC.
Automated Print-to-Cut Matching: Integrated CCD sensor compensates for graphic stretch or distortion automatically.
Die-Free Digital Flexibility: Eliminates physical die tooling costs—start cutting directly from CAD, AI, or CorelDRAW vector files.
