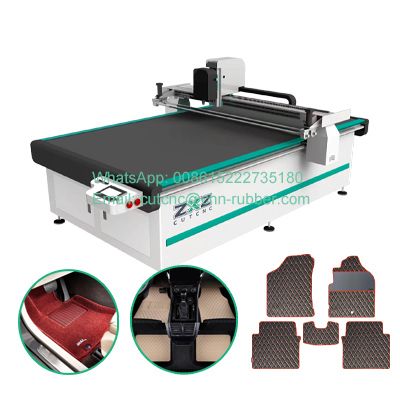

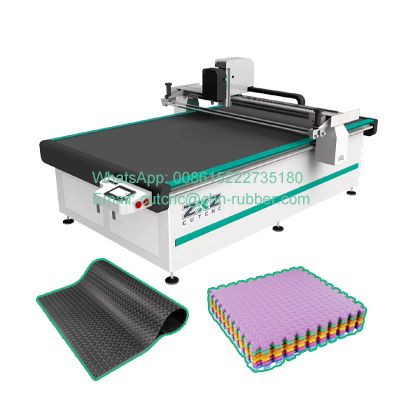

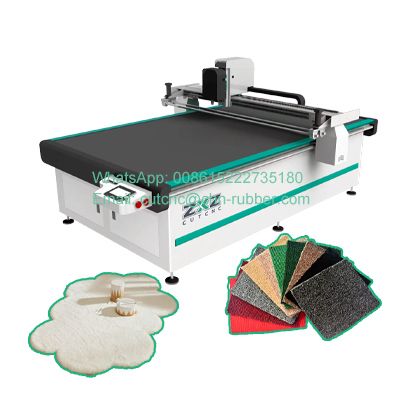

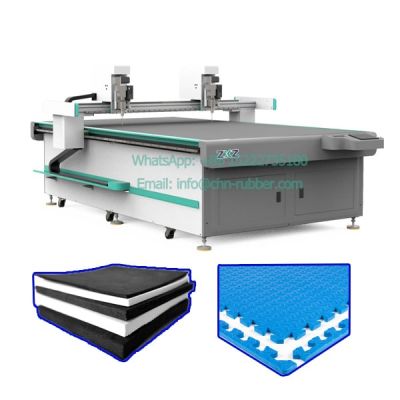

In the carpet industry, precision and efficiency are paramount, especially when working with various carpet types. The CNC carpet cutting machine is designed to meet these demands, offering high-speed, accurate cutting capabilities essential for components such as area rugs, custom mats, and industrial carpets. Equipped with an oscillating knife system, this machine ensures clean cuts without fraying, accommodating various material thicknesses and densities. Its compatibility with CAD software allows for seamless integration into existing workflows, enhancing productivity and consistency.

Technical Specifications and Material Compatibility

The CNC carpet cutting machine is tailored for high-precision cutting of various carpet materials, including:

1. 1. Woven carpets (e.g., Wilton, Axminster)
2. 2. Tufted carpets
3. 3. Needle-punched carpets
4. 4. Non-woven carpets
5. 5. EVA mats / rubber floor

Key technical specifications include:

1. 1. Working area: 2500mm × 1600mm (customizable)
2. 2. Cutting speed: 2000 mm/s (varies depending on material)
3. 3. Cutting tolerance: ±0.2 mm (may vary with material)
4. 4. Cutting thickness: ≤15 mm (depending on material; thicker materials like foam can be cut with appropriate settings)
5. 5. Software & nesting: ET automatic nesting module improves material utilization by more than 20%; compatible with DXF, PLT, PDF, AI formats

The cutting table can be customized to match specific material widths and production requirements, ensuring optimal precision, efficiency, and adaptability for diverse carpet manufacturing applications.

Company Expertise and Custom Solutions

Our company specializes in providing cnc carpet cutting machine tailored to the unique challenges of the carpet industry. We understand that carpets vary widely in thickness, density, and weave structure, and not all types can be cut the same way. To address these challenges, our machines offer adjustable cutting pressure, multi-layer cutting capability, and advanced material stabilization systems, ensuring precise cuts even on thick or textured carpets. For large rolls or area rugs, we provide customizable table lengths and widths, as well as vacuum adsorption platforms and partitioning systems to securely hold the material during cutting.

By focusing on these carpet-specific requirements, we help manufacturers achieve consistent edge quality, accurate patterns, and minimal waste, even when processing complex designs or multiple carpet layers.

Get Started with Your Custom Carpet Cutting Solution

Whether you need precise cuts on woven carpets, tufted carpets, non-woven materials, or other textiles, our oscillating knife CNC carpet cutting machine can be tailored to your material widths and production requirements.

Contact us today to discuss your project or request a demo, and see how a professional, adaptable cutting solution can enhance your carpet manufacturing efficiency.
