Next-Gen Smart Software System for Industrial Cutting

Optimize your entire digital manufacturing workflow from raw vector ingestion to finished part sorting. ZXZ robust cutting machine software provides an integrated control framework engineered to maximize hardware throughput, reduce labor overhead, and eliminate material waste.

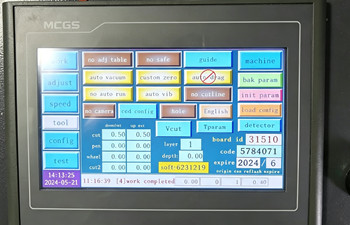

ZXZ smart software system user interface and modular operational HMI control dashboard

01. Modular Software Architecture & HMI Controls

It unifies complex operations into a single-pane control panel.

1. Universal vector file ingestion (DXF, PLT, AI, SVG) with auto-healing path algorithms.
2. Multi-layer management allowing distinct speed and depth parameters per color layer.
3. Real-time hardware kinematics feedback and knife status monitoring metrics.

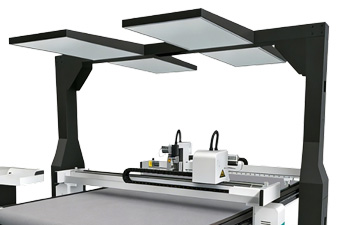

Large-format vision recognition framework contour scanning via advanced cutting machine software

02. Large-Format Visual Recognition System

Engineered specifically for custom printed sheets and large composite materials. The integrated camera algorithm automatically maps out outlines without manual programming.

1. Instantaneous full-envelope background scanning and automatic edge feature extraction.
2. Deformation and stretch compensation to match contours perfectly on flexible fabrics.
3. Drastically cuts down prep time for advertising banners, flags, and complex graphics.

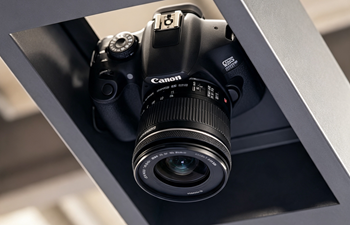

High precision CCD camera registration marks alignment module inside ZXZ smart software system

03. CCD Recognition and Positioning System

There are two options of large CCD and small CCD. Our specialized CCD registration module identifies industry-standard target marks at rapid speeds.

1. Advanced target recognition algorithms supporting circles, crosses, and custom mark points.
2. Automatic displacement correction across X/Y axes and precise angular skew compensation.
3. Seamless cross-talk prevention between adjacent nested parts on the vacuum table.

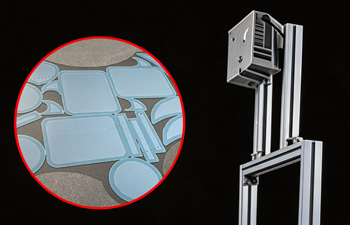

Interactive HD projector positioning engine and leather flaw avoidance nesting layout

04. Projection-Based Positioning System

Bridge the gap between physical material flaws and digital nesting blueprints. The interactive projector module overlays the exact knife path onto the workspace.

1. 1:1 scale dynamic vector overlay projection onto irregular materials such as natural leather hides.
2. Real-time interactive nesting allowing operators to manually drag shapes away from material defects.
3. Maximizes premium surface areas while maintaining fast hardware setup times

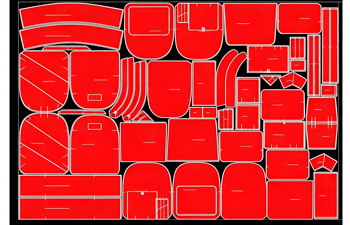

High density optimization nesting module for industrial gaskets and rubber rings engineering

06. High-Density Nesting Module for Gaskets & Rings

Engineered heavily for sealing, rubber, and industrial component manufacturers. This math-driven nesting suite guarantees extreme material cost savings.

1. Sophisticated parts-in-parts nesting mechanics (e.g., placing small circular washers inside large flange hollow cores).
2. Custom perimeter clearance configurations to ensure perfect structural integrity of rubber and foam materials.
3. Drastically lowers matrix scrap skeletons, maximizing raw roll utilization values.

Get a Free Software Demo & Trial

Interested in updating your digital machinery or evaluating system compatibility with ZXZ high-performance proprietary software algorithms? Click the action button below to submit your industrial specifications. Our technical engineering support team will rapidly provide installation packages, functional setup guides, and comprehensive layout integration support.
