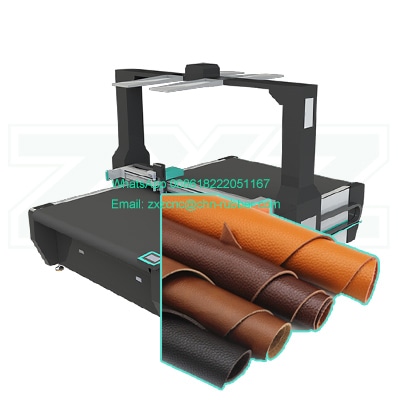

Our industrial automatic leather cutting machine is an advanced CNC digital cutting solution specifically engineered for the shoe and leather goods manufacturing industry. Designed to process natural hides, microfiber, synthetic leather, shoe linings, EVA midsoles, and fiberboard insoles, this machine replaces traditional manual die-punching with clean, blade-driven CNC precision.
Equipped with a high-definition CCD vision camera system and an optional HD Overhead Projector, the machine allows operators to visually inspect leather hides, mark defect zones, and project cut nested patterns directly onto the material surface in real time. This smart workflow avoids leather flaws, maximizes yield by up to 15-20%, and ensures perfect contour alignment on printed or textured uppers without yellowing, burnt edges, or toxic smoke.

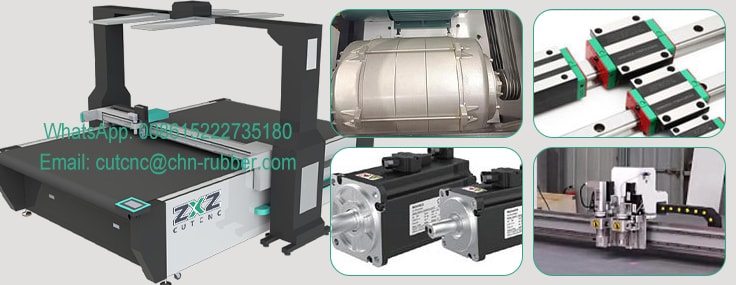

Driven by high-torque Delta/Panasonic servo systems, Taiwan linear guide rails, and an 8-zone vacuum adsorption table, the machine delivers high-speed oscillating knife cutting up to 1200mm/s with repeatable accuracy within ≤0.1mm.
High-resolution CCD vision system captures hide contours and printed registration marks, automatically adjusting cutting paths to avoid leather scars or natural flaws.
Overhead digital projector overlays virtual cutting pieces onto raw leather hides, letting operators preview nest layouts and fine-tune placement instantly before cutting.
High-frequency knife cutting eliminates thermal discoloration, hardened burn edges, and chemical fumes associated with laser cutting, preserving soft leather temper.
Aviation aluminum vacuum table with 8 independent suction zones locks flexible leather hides, porous lining mesh, and thick midsole sheets firmly in place.
Capable of handling cutting thicknesses 30mm (depending on material density), easily handling multi-ply shoe linings or stacked midsole foam.
Automatic conveyor feeding bed seamlessly integrates with smart nesting software to enable continuous roll-fed or sheet-fed production with minimal operator labor.

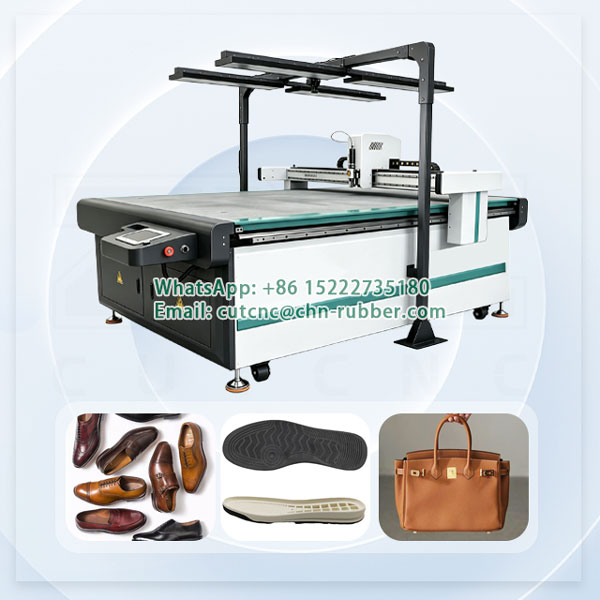

Designed for complete shoe manufacturing workflows, this multi-purpose automatic leather cutting machine processes all major shoe components:
 |
 |
 |
| Specification Parameter | Standard Values / Feature Details |
|---|---|
| Cutting Area (L × W) | 1600 mm × 2500 mm (Custom sizes available upon request) |
| Cutting Tool Configuration | High-frequency Oscillating Knife System (Optional: Servo knife cutting machine | Punching tool | Marking Pen) |
| Visual Systems | CCD Camera Vision System (Standard) + HD Overhead Projector System (Optional) |
| Cutting Speed / Velocity | 800 mm/s – 1200 mm/s (depends on leather hardness and thickness) |
| Cutting Thickness Range | ≤ 30mm (subject to material compressibility and type) |
| Repeated Positioning Accuracy | ≤ 0.1 mm |
| Worktable & Felt Layer | Automatic conveyor table with 4mm high-density durable felt mat |
| Adsorption Method & Vacuum Pump | 8-Zone aviation aluminum vacuum sealing box; 9 KW high-efficiency vacuum pump |
| Motors & Linear Guide Rails | Delta / Dorna / Panasonic Servo System; Taiwan T-WIN Linear Guide Rails |
| Control System & Machine Power | ZHONGRUI CNC Control System; Total Power: 11 KW |
| Voltage & Warranty | AC 380V ± 10%, 50Hz/60Hz; 2-Year Full Machine Warranty |
We prioritize environmental sustainability and operator health in our footwear CNC cutting machinery. Unlike thermal laser cutters, our blade-driven automatic leather cutting machine operates cleanly without generating toxic smoke, hazardous fumes, or thermal air pollutants. The ultra-quiet 9KW vacuum pump and enclosed electrical design protect shop floor workers while minimizing factory power consumption.
Contact our engineering team today to receive direct manufacturer pricing, custom tool configuration advice, or free sample cutting for your leather uppers, linings, and midsoles.
Shandong ZXZ CNC Equipment Co., Ltd provides vibrating knife cutting machine, mainly through oscillating knife to cut flexible materials, including asbestos/non-asbestos/graphite/PTFE sheet/rubber/PVC sheet/clothing fabric/packaging/cardboard/leather, etc. The oscillating knife cutter we provide has a high cost performance, contact us immediately for more information.
