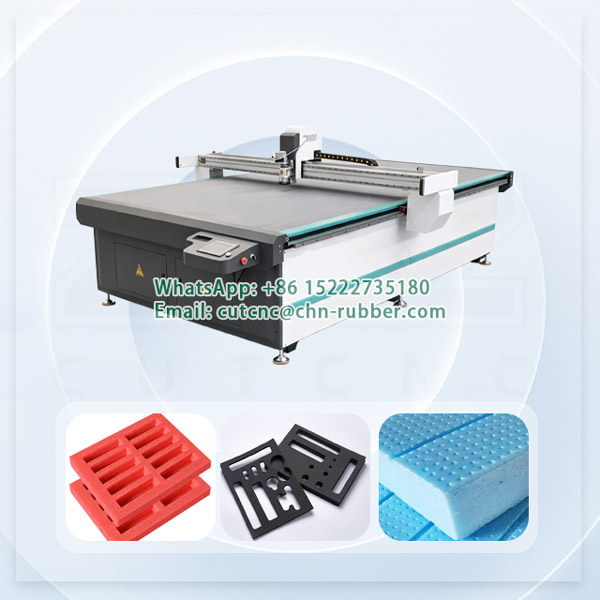

Introducing our latest high-speed digital foam board cutting machine, specifically engineered for precision die-less cutting of KT boards, PVC foam sheets, EVA foam, Chevron boards, and paper honeycomb panels. Powered by high-frequency electric oscillating knife modules and optional pneumatic vibrating blades, this machine eliminates thermal damage, smoke, yellowing, and toxic fumes—delivering pristine, vertical, and burr-free edges on light-colored and heat-sensitive foam substrates.
Built on a heavy-duty welded steel frame with an aerospace-grade aluminum honeycomb vacuum table, this digital foam board cutting machine integrates zonal vacuum adsorption, dual tool holder auto-switching, red-light position preview, and automatic CAD nesting software to achieve maximum material efficiency and low labor cost.
Driven by high-power motors, the vibration blade penetrates tough PVC foam and dense EVA boards without dragging or deforming material edges.
Allows simultaneous mounting of vibrating knife tools, V-cut grooving modules (0°-45°), creasing wheels, or milling router spindles for multi-process tasks.
Ultra-flat aluminum honeycomb countertop paired with partitioned zonal vacuum adsorption ensures rigid fixing of flat, curved, or lightweight foam boards.
Red laser pointer projects full cutting paths for precise material positioning, while infrared safety sensors prevent collision hazards during operation.
| Specification Property | Machine Parameter Details |
|---|---|
| Machine Model | ZXZ-S2516E |
| Standard Tool Modules | Electric High-Frequency Oscillating Knife + Creasing / V-Cut Tool |
| Optional Tool Extensions | Pneumatic Knife, Milling Router Spindle, Drag Knife |
| Max Cutting Velocity | 800 mm/s – 1200 mm/s (Depending on board density and thickness) |
| Precision & Repeatability | Repeated Accuracy: ≤ ±0.1 mm | Resolution: 0.025 mm |
| Cutting Thickness Range | 1.0 mm – 50 mm (Upgradeable to 100mm with pneumatic cutter tool) |
| Motor & Motion Control | Delta / DORNA AC Servo Motor System + Precision Linear Guide Rails |
| Tabletop Structure | Aerospace Aluminum Honeycomb Table + Zonal Vacuum Adsorption |
| Software & Vector File Formats | CUT, LaserCAD, ET Super Nesting System | File Formats: DXF, PLT, AI, PDF |
| Data Transmission Interface | High-Speed Industrial Ethernet Port |
This digital foam board cutting machine handles a wide range of soft, medium, and high-density foam substrates:
Contact Shandong ZXZ CNC Equipment Co., Ltd for detailed machine pricing, custom table sizes, or to send material samples for free test cutting.
Shandong ZXZ CNC Equipment Co., Ltd provides vibrating knife cutting machine, mainly through oscillating knife to cut flexible materials, including asbestos/non-asbestos/graphite/PTFE sheet/rubber/PVC sheet/clothing fabric/packaging/cardboard/leather, etc. The oscillating knife cutter we provide has a high cost performance, contact us immediately for more information.
