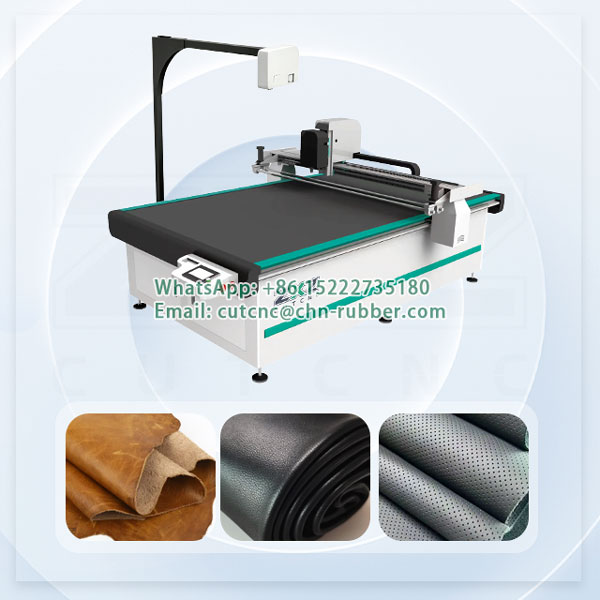

Our multi-functional leather cnc machine is an advanced digital cutting workstation engineered for natural hides, genuine leather, synthetic PU/PVC, microfiber, and shoe component materials. Powered by high-speed blade cutting technology, this knife cutting machine for leather replaces traditional cutting dies with automated precision, delivering clean cut edges without toxic fumes, edge yellowing, or thermal burning.
Equipped with an integrated multi-tool head—combining a high-frequency Oscillating Knife, Driven Rotary Knife, Punching Tool, and Marking Pen—this versatile CNC platform completes profile cutting, decorative punching, stitching line drawing, and notch marking in a single seamless operation.
To maximize hide utilization and eliminate raw material waste, the system features an HD Overhead Projector and intelligent Auto Nesting Software. Operators can easily inspect leather flaws, project digital patterns directly onto the hide, and automatically optimize pattern layouts for up to 15%–20% higher material yield.
Precision vertical blade vibration cleanly slices through dense natural cowhides, thick soles, and heavy gasket materials without pulling or blade drag.
High-speed powered circular blade engineered for delicate soft leather, thin garment skins, woven linings, and multi-ply synthetic sheet rolls.
Automatic punching mechanism supports various pin sizes to execute precise stitching holes, decorative eyelets, and positioning slots.
Silver/ink gel pen automatically plots part alignment notches, sewing guides, and dart lines directly onto leather pieces.
Projects 1:1 real-time digital cut patterns onto irregular raw hides, letting operators manually adjust cut placement around scars and natural defects.
Intelligent CAD/CAM nesting algorithms optimize part layout according to hide shape and defect markings, drastically increasing material yield.

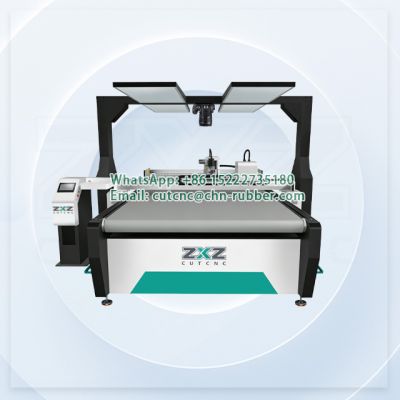

To accommodate different factory floor layouts, our knife cutting machine for leather offers two CNC operator interface options: an integrated machine-mounted touch display to optimize floor space, or a standalone independent CNC control cabinet for enhanced operational comfort and aesthetics.
Option A: Standalone Independent CNC Control Platform |
Option B: Integrated Compact Operation Interface |
| Parameter Name | Standard Specification Value |
|---|---|
| Working Area (L × W) | 1600 mm × 2500 mm (Custom sizes available) |
| Multi-Tool Configuration | Oscillating Knife + Driven Rotary Knife + Punching Tool + Marking Pen |
| Vision & Nesting Systems | Overhead HD Projector System + Automatic Leather Nesting Software |
| Max Cutting Speed | Up to 2000 mm/s (depends on leather texture & hardness) |
| Translational Velocity | 800 mm/s – 1200 mm/s |
| Feeding Material Thickness | Up to 30 mm |
| Repeated Positioning Accuracy | ≤ 0.1 mm |
| Motor & Drive System | Delta Servo Motors and High-Precision Servo Drives |
| Control System & Screen | CNC Controller with LCD Touch Screen Interface |
| Supported File Formats | PLT, DXF, AI (Compatible with standard CAD software) |
| Power Requirements | Overall Machine Power: 11 KW | Vacuum Pump Power: 9 KW | 380V ± 10% |
| Machine Dimensions & Weight | L 3450 mm × W 2300 mm × H 1250 mm | Weight: 1400 KG |
| Warranty & Export Packaging | 2 Year Machine Warranty | International Standard Wooden Case |
We prioritize sustainability and safety in the design of our knife cutting machine for leather. Operating with pure mechanical blade cutting, our machines cut leather cleanly without producing smoke or odor, supporting environmental goals and ensuring a safe shop floor. Built with high-grade components like Delta servos and robust steel frames, these machines deliver low-maintenance, long-term operational reliability.
Contact our engineering team to evaluate your leather cutting needs, request custom tool combinations, or arrange free sample testing for your materials.
Shandong ZXZ CNC Equipment Co., Ltd provides vibrating knife cutting machine, mainly through oscillating knife to cut flexible materials, including asbestos/non-asbestos/graphite/PTFE sheet/rubber/PVC sheet/clothing fabric/packaging/cardboard/leather, etc. The oscillating knife cutter we provide has a high cost performance, contact us immediately for more information.
