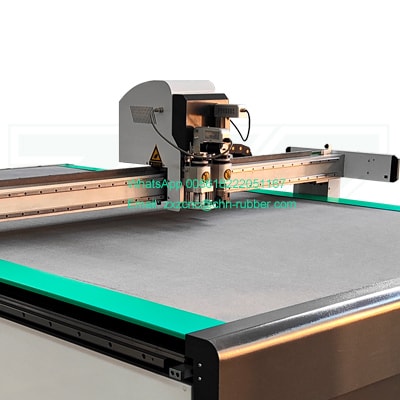

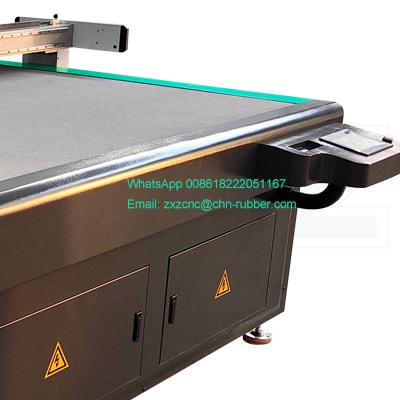

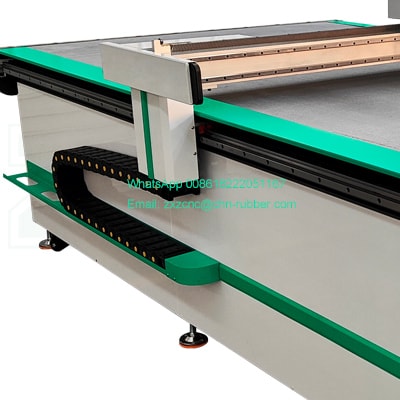

1set oscillating knife cutting tool + 1set 400W servo knife or other cutting tool
Email: zxzcnc@chn-rubber.com
WhatsApp: 008618222051167

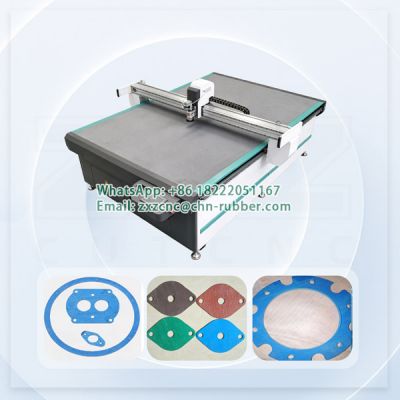

Oscillating knife cutter is a new gasket cutting tool, mainly used for non-metallic materials such as rubber, PTFE, PVC, silicone sheet, asbestos, non-asbestos fiber, graphite gasket cutting, etc. Using CNC, cutting various types of materials by drawing or importing drawings. The machine mainly achieves cutting purpose by moving the blade quickly over the cutting material, which can achieve precise and clean cutting without generating smoke, burning edges.
| Working area | 2500mm(L)x 1600mm(W) We can customize the size of the working area according to the material size and customer requirements |
| Machine size | 3400mm*2210mm*1350mm |
| Idle speed | 1800mm/s |
| Cutting speed | 10-1300mm/s（Due to different materials,will affect） |
| Cutting precision | +/-0.2mm |
| Cutting tool | 100W Oscillating knife * 1set + 400W Servo knife * 1set |
| Working table | 4mm felt |
| Countertop Type | Fixed countertop |
| Cutting thickness | 1mm - 10mm(The thickness of foam cutting is greater) |
| Motor & Drive system | DORNA motor and driver |
| Vacuum pump power | 9kw |
| Machine power | 2KW |
| Transmission interface | Internet network port |
| Safety device | Infrared blocking stop and anti-collision protection |
| Nesting software | ET automatic nesting module improves utilization rate by more than 20% compared with manual operation |
| Data Format | DXF/PLT/PDF/AI |
| Software | CUT/LaserCAD/ET Super Nesting/JDSoft |
| Warranty | 1 YEARS (Except for consumables, such as blades and felt) |

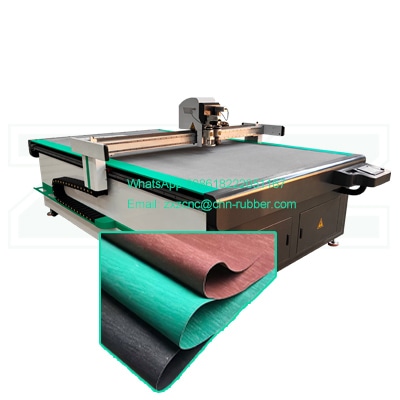

The oscillating motion minimizes the generation of dust and debris, which is particularly important when cutting asbestos materials, as asbestos fibers can be hazardous if inhaled. Using an oscillating knife reduces the risk of airborne particles compared to other cutting methods. Besides compressed asbestos, oscillating knife cutter can also handle a range of other gasket materials, such as non-asbestos fibers, rubber, and PTFE. This versatility makes them a valuable tool in industries where different gasket materials are required.
 |
 |

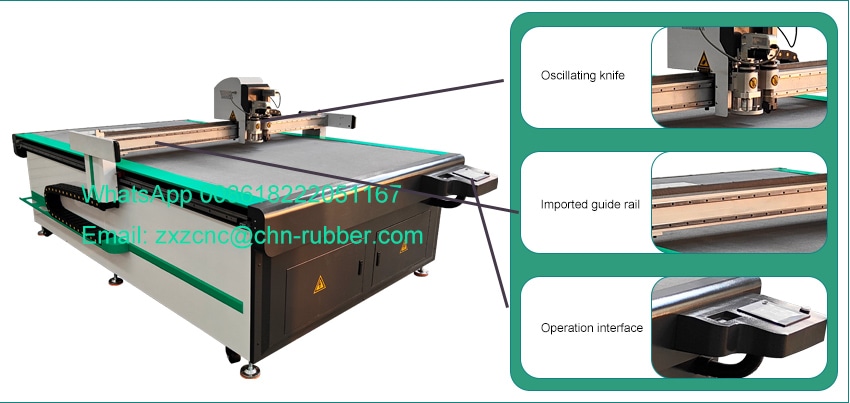

This is a modularized cutting tool machine, which means we can install 2 or more cutting tools without manual intervention to replace the tool head, which greatly saves the time of manual intervention, improves production efficiency, and automatically changes cutting tools to achieve the purpose of cutting different materials.
If you need,please contact us
Email: zxzcnc@chn-rubber.com
WhatsApp: 008618222051167
Tianjin ZXZ CNC cut company provides vibrating knife cutting machine, mainly through oscillating knife to cut flexible materials, including asbestos/non-asbestos/graphite/PTFE sheet/rubber/PVC sheet/clothing fabric/packaging/cardboard/leather, etc. The oscillating knife cutter we provide has a high cost performance, contact us immediately for more information.
