Rubber Gasket Vibrating Knife Cutter
Email: cutcnc@chn-rubber.com
WhatsApp: 008615222735180( Mobile)

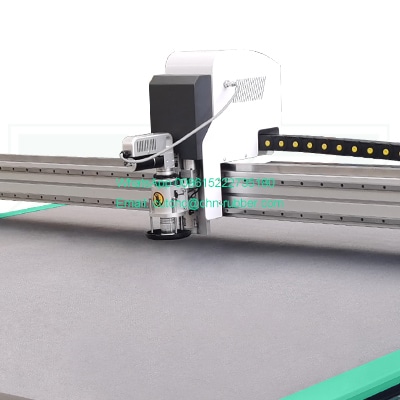

Equipped with a vibrating knife head
| Working area | 1.6m x 2.5m |
| Machine size | 3.45m x 2.3m x 1.25m |
| Rated power | 9KW |
| Voltage | 380V+/-10% |
| Operating system | Chinese/English (other language systems can be configured) |
| Repeated accuracy | ≤0.1mm |
| Guide rail | Taiwan Brand |
| Cable | German brand |
| Countertop | Fixed |
| Cutting tablecloth | Dutch Brands |
| Motor | DORNA (Can be replaced by Japan's Panasonic, Taiwan's Delta according to cutting requirements) |
| Translational velocity | 800-1200mm/s |
| Safety device | infrared sensors 、anti-collision block、emergency button |

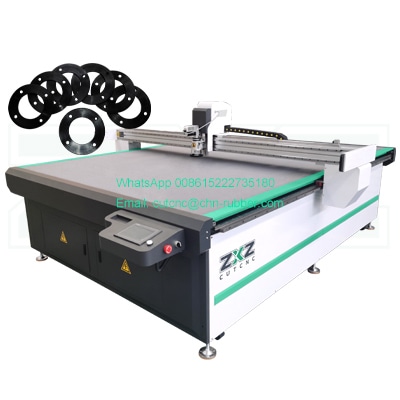

According to the cutting requirements and customer requirements, the hardware of the rubber gasket cutter is slightly different. The one in the picture is a single blade holder with a vibrating blade head, but double blade holders or a single blade holder with a low-power vibrating blade and a high-power vibrating blade can also be customized according to requirements. In this way, the rubber gasket cutter can improve production efficiency and cutting accuracy of some relatively hard rubber gaskets with a thickness of more than 5mm.
Vibrating knife cutter, through the motor, uses a rapidly vibrating blade to cut materials with high precision and efficiency. This machine is becoming more and more popular because it can be used to cut a lot of materials and is widely used in different industries.
Contact us:
Email: cutcnc@chn-rubber.com
WhatsApp: 008615222735180
Tianjin ZXZ CNC cut company provides vibrating knife cutting machine, mainly through oscillating knife to cut flexible materials, including asbestos/non-asbestos/graphite/PTFE sheet/rubber/PVC sheet/clothing fabric/packaging/cardboard/leather, etc. The oscillating knife cutter we provide has a high cost performance, contact us immediately for more information.
