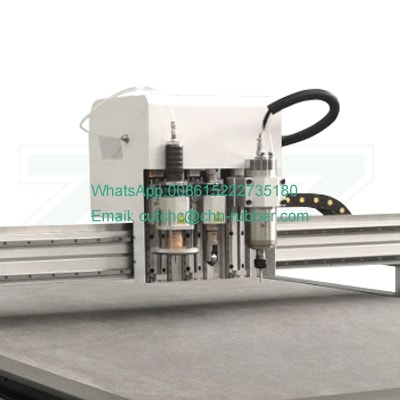

The flatbed digital cutter is a high-precision cutting machine designed for KT board, foam board, and various sheet materials. It delivers smooth, accurate cuts with a fully automated control system, ensuring efficiency in signage, packaging, and display production. Equipped with advanced digital cutting technology, flatbed digital cutter provides fast and reliable performance for both large-scale industrial use and customized projects.
| Parameter | #2516 Machine |
| Working area | L 2500mm x W 1600mm |
| Cutting speed | 1200mm/s (Due to different materials,will affect) |
| Cutting toloerance | +/-0.01mm (The tolerance due to different materials) |
| Cutting tool | 100W Oscillating knife / Creasing tool / Half-cut / CCD / Round knife |
| Countertop type | Automatic feeding |
| Material fixed way | Aluminum bellows type vacuum adsorption platform, partition / follow adsorption |
| Cutting thickness | ≤50mm (Due to different materials,will affect) |
| Feeding thickness | 120mm |
| Drive system | Servo motor / Linear guide rail / Rack |
| Motor | Delta |
| Nesting software | ET automatic nesting module improves utilization rate by more than 20% compared with manual operation |
| Data format | DXF / PLT / PDF / AI |
| Transmission interface | Ethernet |
| Fault detection | Automatically detect electrical faults when powered on and push codes to the system |
| Red preview function | Preview the cutting sample before processing to see if it is in the material to prevent missoperation |
| Software | CUT / LaserCAD / ET Super nesting / JDsoft |
| Frame structure | Carbon dixide protected welding bed, secondary vibration aging treatment |
| Package | Wooden case |
The digital foam board cutting machine offers precise, efficient performance for a variety of production tasks, excelling in kt board cutting to deliver clean, accurate edges essential for high-quality outputs.
