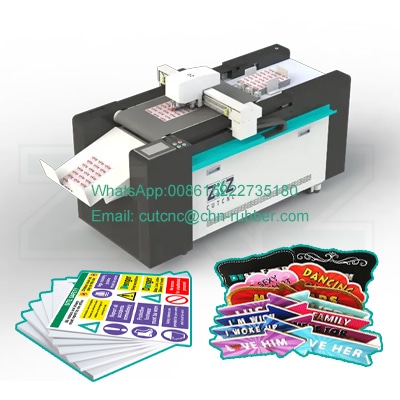

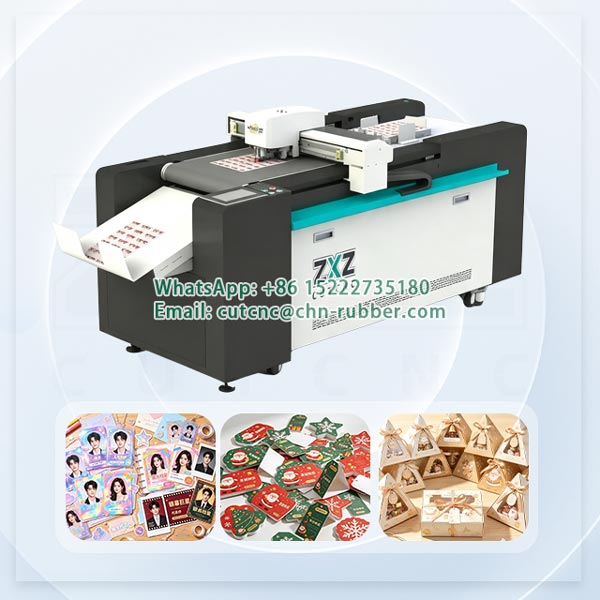

Our advanced 600mm × 800mm CNC vinyl cutting machine (also widely known as the CNC sticker cutting machine) is an industrial-grade digital cutter engineered for precise die-free production of custom vinyl decals, adhesive stickers, labels, and packaging prototypes. Designed for both quick-turnaround printing shops and industrial processing lines, this system seamlessly integrates kiss-cutting, oscillating knife cutting, creasing, and automatic sheet feeding options into one compact station.
Equipped with a high-resolution Small CCD Vision Camera System, the machine automatically scans printed registration marks and compensates for material stretching, distortion, or feeding skew in real time. This ensures ultra-accurate print-to-cut contour alignment along intricate graphics without fraying, scorching, or yellowing edges—offering a clean, cold-cutting alternative to traditional die-punching and thermal laser cutters.
Powered by high-torque Delta servo drives, linear guide rails, and an aluminum vacuum adsorption platform, the ZXZ-A6080 series achieves cutting speeds up to 1500mm/s with positioning repeatability within 0.05mm. Available in standard ZXZ-P6080AF (<2mm thickness) and heavy-duty ZXZ-A6080Pro (<5mm thickness) models to meet diverse media demands.
Integrated optical CCD camera automatically detects printed mark points, enabling flawless contour cutting for printed stickers, decals, and labels.
Supports delicate depth-controlled kiss cutting for top vinyl adhesive layers, alongside high-frequency oscillating knife full cuts for thick boards.
Automated conveyor belt feeding combined with an aluminum bellows vacuum adsorption table ensures continuous loading and firm material hold-down.
Projects a visible red laser preview onto the material surface prior to processing, preventing graphic misplacement and material waste.
Smart electrical system performs automatic circuit scans upon start-up and pushes error codes directly to the interface for quick troubleshooting.
CO2 shielded welded heavy machine body subjected to secondary vibration aging treatment to prevent mechanical deformation over long-term use.

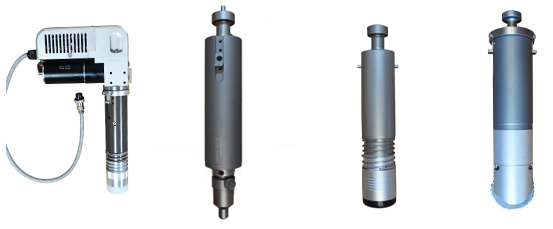

Equipped with modular tool head slots, our CNC sticker cutting machine quickly adapts to diverse material hardness and processing requirements:
| Parameter / Feature | ZXZ-P6080AF (Standard) | ZXZ-A6080Pro (Heavy-Duty) |
|---|---|---|
| Working Area | 600 mm × 800 mm | 600 mm × 800 mm |
| Max Cutting Thickness | < 2 mm | < 5 mm |
| Max Cutting Speed | Up to 1500 mm/s (depends on material type) | |
| Cutting Tolerance & Accuracy | ±0.01 mm (Positioning Accuracy: 0.05 mm) | |
| Cutting Tool Modules | Small CCD Camera / Oscillating Knife / Kiss Cut / Creasing Tool / Servo Knife | |
| Countertop & Feeding Type | Automatic feeding conveyor worktable | |
| Material Fixation Method | Aluminum bellows vacuum adsorption platform (Partition / Follow adsorption) | |
| Drive System & Motors | Delta Servo Motors / Precision Linear Guide Rails & Rack Drive | |
| Rated Power | 3.2 KW | |
| Supported File Formats | PLT / OLT / CF2 / XML / DXF | |
| Transmission & Preview | Ethernet Port / Red Light Positioning Alignment Preview | |
| Operating Voltage | AC 220V / 380V ± 10%, 50Hz/60Hz | |
Ideal for small-to-medium batch manufacturing, sign workshops, print shops, and packaging design labs processing:
Looking for direct factory pricing or free testing samples for your vinyl sticker production? Contact our technical team today for immediate support.

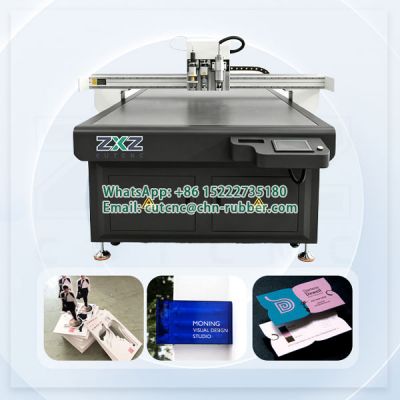

Shandong ZXZ CNC Equipment Co., Ltd provides vibrating knife cutting machine, mainly through oscillating knife to cut flexible materials, including asbestos/non-asbestos/graphite/PTFE sheet/rubber/PVC sheet/clothing fabric/packaging/cardboard/leather, etc. The oscillating knife cutter we provide has a high cost performance, contact us immediately for more information.
