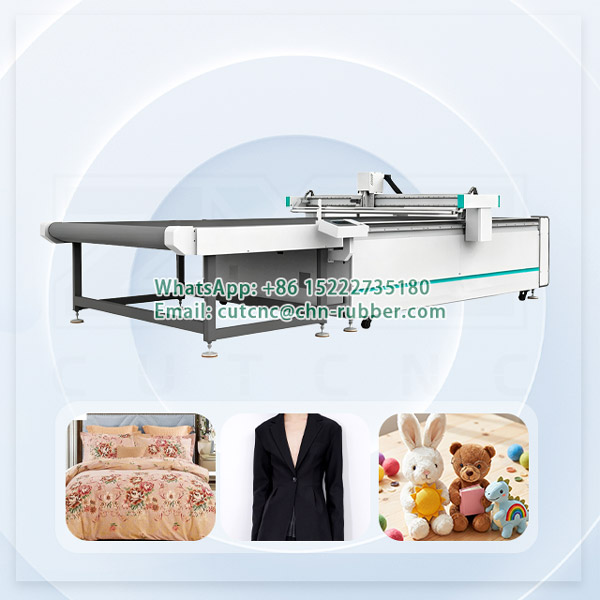

Cloth spreading and cutting CNC machine 2500X1600mm

Product ID : ZXZ-2516AF

Product Attributes :

Contact Us

Email: cutcnc@chn-rubber.com

WhatsApp: 008615222735180

Product Description

High-Precision CNC Machine for Cutting Fabric & Industrial Felt (Oscillating Knife System)

Our industrial-grade CNC machine for cutting fabric is a fully automated digital cutting solution engineered for textiles, technical fabrics, apparel, upholstery, and dense industrial felt. Powered by advanced high-frequency Oscillating Knife Cutting Tool technology (cold blade cutting), it delivers perfectly smooth, burr-free edges without the smoke, yellowing, or edge-burning typical of laser cutters, and avoids the material pulling or fraying common with traditional straight-knife shearing machines.

Featuring a generous working area (standard 2500mm × 1600mm, 3000mm × 1800mm configurations), this CNC cloth cutting machine seamlessly integrates an automatic roll feeding rack, an extendable unloading platform, and an intelligent ET automatic nesting software module that increases material utilization by over 20% compared to manual layout.

Equipped with a dual vision system—a high-resolution large-format CCD camera for printed pattern contour recognition and an optical projector for rapid cut-line verification—this machine guarantees unmatched accuracy at production speeds up to 2000mm/s.

Key Performance Advantages

1. High-Frequency Oscillating Knife

Precision knife blade technology cuts multi-layer textiles and thick felt cleanly without thermal smoke, edge discoloration, or blade drag.

2. Fully Automated Workflow

Automatic roll feeding rack combined with a continuous conveyor worktable and extension bed allows uninterrupted processing of fabric rolls.

3. ET Intelligent Nesting Module

Automated pattern nesting algorithms minimize fabric scrap, raising overall yield by over 20% compared to conventional manual cut layouts.

4. Dual CCD & Projector Guidance

Large-format CCD camera identifies printed fabric graphics for contour cutting, while the overhead projector allows instant visual verification.

5. Multi-Zone Vacuum Adsorption

Aluminum bellows partitioned vacuum bed firmly holds breathable fabrics, knitted materials, and thick felt flat during high-speed cutting.

6. Heavy Stress-Relieved Chassis

CO2 shielded heavy welded machine bed undergoes secondary vibration aging treatment to preserve structural rigidity under continuous 24/7 industrial use.

Modular Tooling System

Unlike fixed straight-knife devices, our CNC felt and cloth cutting machine features configurable quick-change tool heads tailored to specific material densities:

cnc machine for cutting fabric oscillating knife tool head

Supported Cutting & Marking Tool Heads:

High-Frequency Oscillating Knife Tool: Primary tool for precise profile cuts on woven fabrics, technical textiles, felt, foam, and composite reinforcements.
Driven Rotary (Circular) Knife Tool: Powered high-speed blade ideal for single-ply or multi-ply delicate fabrics, mesh, and synthetic woven sheets.
Pneumatic Cutting Knife: High-power air-driven blade for cutting tough, dense industrial felt and thick multi-layer textiles up to 70mm.
Servo Knife Cutting Tool: Driven precision blade for controlled cutting of rigid technical fabrics and gaskets.
Industrial Marking Pen: Automatically draws part numbers, alignment notches, dart points, and sewing lines directly onto cut components.

Technical Specifications & Model Configurations

Parameter / Model	ZXZ-2516F	ZXZATF3018
Working Area (L × W)	2500mm × 1600mm	3000mm × 1800mm
Cutting Speed	200 mm/s – 2000 mm/s (varies depending on fabric properties)
Cutting Precision	±0.1 mm
Max Cutting Thickness	Up to 70 mm (material dependent)
Tool Options	Oscillating Knife / Driven Rotary Knife / Pneumatic Knife / Servo Knife / Marking Pen
Conveyor & Feeding Table	Automatic roll feeding conveyor table with extendable unloading bed
Material Fixation Method	Aluminum bellows vacuum adsorption platform (Partitioned / Follow-me suction)
Motor & Drive System	Delta Servo Drive System, Linear Guide Rails, High-Precision Gear Rack
Nesting Software	ET Automatic Nesting Module (>20% material yield improvement over manual methods)
Supported File Formats	DXF, PLT, PDF, AI, HPGL
Visual Alignment Tools	Large-Format CCD Vision Registration Camera + Optical Overhead Projector
Rated Power & Voltage	9 KW / 11 KW; AC 220V / 380V ± 10%, 50Hz / 60Hz

Industry Applications

Widely adopted across textile processing, industrial manufacturing, and automotive interior sectors:

Apparel & Garments: Pattern drafting, sample making, and customized batch production for sportswear, suits, and printed fabrics.

Furniture & Upholstery: High-precision cutting of sofa covers, leatherette, plush fabrics, and decorative felt cushions.

Automotive Interiors: Fabric and felt cutting for car seats, headliners, foot mats, acoustic insulation, and airbag materials.

Technical Textiles & Felt: Industrial felt pads, filter cloths, fiberglass woven roving, pre-preg carbon fabrics, and acoustic panels.
