Digital fabric garment vibration knife cutting machine

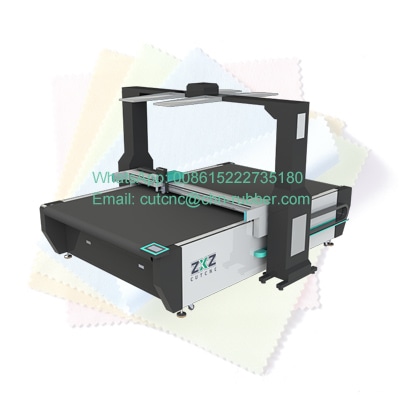

This fabric cnc cutting machine boasts a large 2500mm x 1600mm working area, complemented by an automatic feeding rack for seamless handling of rolled fabrics. Enhanced with intelligent nesting software to maximize material yield and equipped with both a projector system and a large-format CCD camera for accurate visual guidance and pattern recognition, it represents the pinnacle of a modern digital cutting machine for fabric. Whether dealing with intricate patterns, printed textiles, or various material types, the configurable tool head – supporting high-frequency vibrating knives, efficient circular knives, and marking pens – ensures clean, precise cuts and markings every time, streamlining your workflow from design to finished piece.

Key Features:

• Integrated Auto Feed System: Includes an automatic feeding rack for continuous, efficient processing of fabric rolls.
• Expansive Cutting Area: Large 2500mm x 1600mm table accommodates wide fabrics and allows for optimal nesting.
• Intelligent Nesting Software: Maximizes fabric utilization by efficiently arranging patterns, significantly reducing waste.

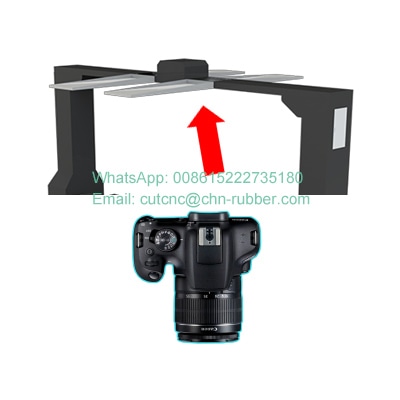

• Dual Vision System (Projector + CCD): Combines a projector for layout guidance and a large CCD camera for precise alignment on prints and pattern recognition.
• Versatile Tool Head Configuration: Supports multiple tools for diverse fabric processing needs.
• High Precision & Speed: Engineered as a top-tier fabric cnc cutting machine for accurate, repeatable results at industrial speeds.

Fabric CNC Cutting Machine Configuration:

Advantages:

High Automation:

• Automatic feeding solves the problem of continuous material supply and reduces the frequency and labor intensity of manual material laying and material replacement.
• CCD panoramic visual recognition automatically locates the edge of the material, identifies the print mark or pattern outline, and saves the time and error of manual alignment.
• The entire process (feeding-identification-layout-cutting) can be carried out continuously, minimizing human intervention.

High Precision:

• CCD visual recognition can accurately capture the actual position and deformation of the material (such as stretching and skew), and adjust the cutting path in real time to ensure that the cutting contour is highly consistent with the actual pattern or mark, which is crucial for the alignment cutting of printed fabrics.
• Projector can assist in previewing and checking before cutting to further confirm the accuracy.

High Efficiency:

• Automatic feeding realizes continuous and uninterrupted operation.
• Layout software automatically optimizes layout, maximizes material utilization, and reduces the thinking time and material waste of manual layout.
• CCD fast identification and positioning is much faster than manual alignment.
• Combined with CNC high-speed cutting, the overall production rhythm is greatly accelerated.

Ability to Handle Complex Scenarios:

• This combination is particularly good at handling printed materials that require precise alignment. CCD can accurately identify the print outline or positioning points.
• For elastic fabrics that are easily stretched and deformed, CCD can also compensate for deformation to a certain extent to ensure cutting accuracy.
• Irregularly shaped materials may need to be laid out to avoid defects, and the visual system can also provide support.
