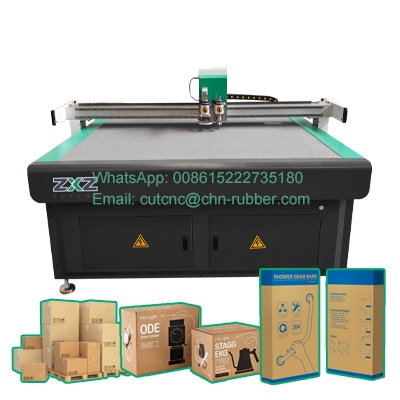

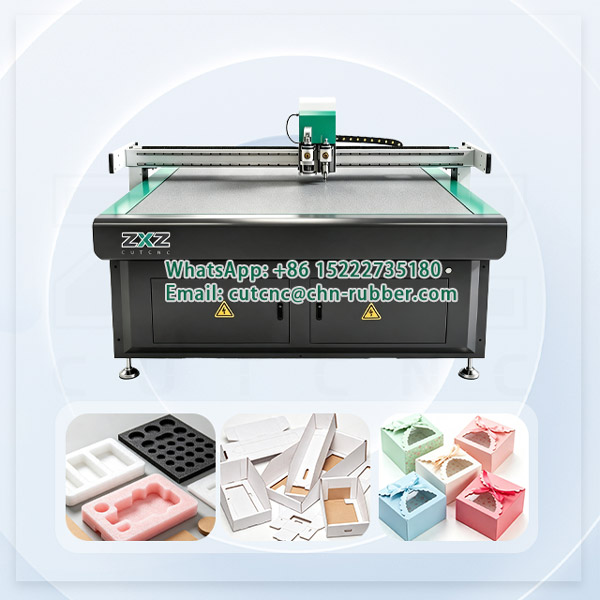

Engineered specifically to meet the high demands of the packaging industry, this professional CNC corrugated cardboard cutter features a generous 1600mm x 2500mm active working area. Designed for standard corrugated sheet sizes, it maximizes material yield while delivering rapid, die-free prototype sampling and short-run production.
Equipped with an intelligent dual-tool module system, this multi-functional cardboard CNC cutter allows simultaneous installation of a high-frequency oscillating knife and a dedicated creasing wheel. The oscillating blade performs clean, crushing-free contour cuts across various flute profiles, while the creasing wheel generates accurate, non-destructive fold line indents for quick box assembly.
Whether you are producing custom shipping cartons, heavy-duty display stands, or intricate point-of-purchase (POP) displays, this versatile corrugated cutting machine serves as an indispensable corrugated box sample maker. It converts CAD designs directly into physical boxes without expensive metal cutting dies.
Holds oscillating cutting knives and creasing/scoring tools concurrently, dramatically reducing setup time and boosting overall throughput.
The spacious 1600mm x 2500mm table comfortably accommodates standard corrugated sheets for larger box prototypes or multi-part nesting.
High-frequency oscillation cuts single-wall, double-wall, and triple-wall cardboard cleanly without crushing flutes.
Delivers precise, smooth, non-destructive crease lines required for accurate box folding, structural integrity, and clean assembly.
Tailored specifically for fluted paperboard, honeycomb board, grayboard, and corrugated plastic materials.
Vibration-aged welded steel bed and digital servo drivers guarantee long-term stability and ±0.01mm cutting tolerance.
| Parameter Item | ZXZ-S2516E Specification Details |
|---|---|
| Machine Model | ZXZ-S2516E Digital Packaging Sample Cutter |
| Working Area | 2500 mm × 1600 mm |
| Max Cutting Speed | 1200 mm/s (Varies based on material density & thickness) |
| Cutting Tolerance | ± 0.01 mm |

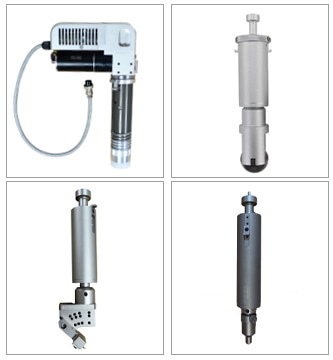

| Cutting Tools | 100W/350W High-Frequency Oscillating Knife, Creasing Wheel, V-Cut Tool, Kiss-Cut Tool |
| Table & Vacuum Bed | Fixed platform with aluminum bellows vacuum adsorption (Zone / Follow-me vacuum) |
| Max Cutting Thickness | ≤ 50 mm |
| Feeding Clearance | 120 mm |
| Drive & Motor System | Servo Motors (DORNA / Delta), Precision Linear Guide Rail & Rack |
| Nesting Software | ET Auto-Nesting Module (Improves material utilization rate by >20%) |
| Supported Data Formats | DXF, PLT, PDF, AI |
| Interface & Diagnostics | Ethernet; Auto power-on fault detection & red light boundary preview |
| Supported Control Software | CUT / LaserCAD / ET Super Nesting / JDsoft |
| Frame Construction | CO2 gas shielded heavy-duty steel bed with secondary vibration aging treatment |
Designed for shipping parcel labels, product barcode stickers, and advertising labels with precise depth control for backing-paper kiss-cutting alongside contour full cutting.
Interactively performs angular grooving and contour cutting for thick corrugated board, honeycomb paperboard, grayboard, and corrugated plastic board structures.
The standard setup for corrugated box sampling and manufacturing. Simultaneously executes precise creasing fold lines and full boundary cuts, ensuring perfect folding accuracy for shipping boxes and hang tags.
Looking to upgrade your packaging sample workflow with our corrugated box sample maker? Contact our engineering specialists for factory-direct pricing, custom bed sizes, tool selection, and free material testing.
