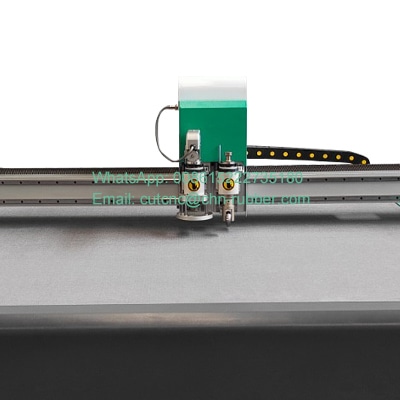

CNC carton box sample maker cutting machine

Carton box sample maker cutting machine specifically engineered for the demands of modern packaging development and short-run production, this machine serves as an exceptional carton box sample maker cutting machine. It seamlessly integrates three essential tools – a high-precision vibration knife for intricate profile cutting, a dedicated creasing tool for perfect fold lines, and a versatile V-shape cutting tool for creating sharp, professional folds essential for complex structures and high-quality finishes. Move directly from digital design to tangible, high-fidelity prototypes or small-batch custom orders without the need for expensive and time-consuming traditional dies. This carton sample maker empowers designers and manufacturers to iterate quickly, test structural integrity, and produce market-ready packaging samples or finished goods with speed, accuracy, and unparalleled flexibility. It's the ideal solution for businesses needing agile and precise carton converting capabilities.

Key Features

1. 1. Triple-Tool Functionality: Equipped with a vibration/oscillating knife, creasing wheel tool, and V-shape cutting tool, offering comprehensive capabilities for cutting, folding, and structural grooving in a single integrated platform.
2. 2. Precision V-Grooving: The dedicated V-shape cutter enables the creation of precise angled grooves (e.g., 45°, 60°, 90°), allowing for sharp, clean folds without material compression, crucial for premium carton construction and complex geometric designs.
3. 3. High-Fidelity Vibration Cutting: Delivers exceptionally clean and accurate cuts through various carton materials, handling intricate patterns, tight curves, and internal cut-outs with smooth edges.
4. 4. Optimized Creasing System: Produces uniform and accurate fold lines that prevent surface cracking and ensure easy, precise assembly of cartons and boxes.
5. 5. Die-Less Production Flexibility: Eliminates the need for traditional cutting dies, making short runs, personalized packaging, and design revisions highly cost-effective using this versatile carton cutting machine.
6. 6. User-Friendly Operation: Features intuitive software compatibility (accepting standard CAD formats) and controls for efficient job setup and execution.

Carton Sample Maker Configuration

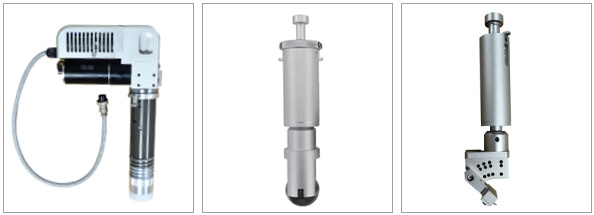

Configuring Cutting Tools

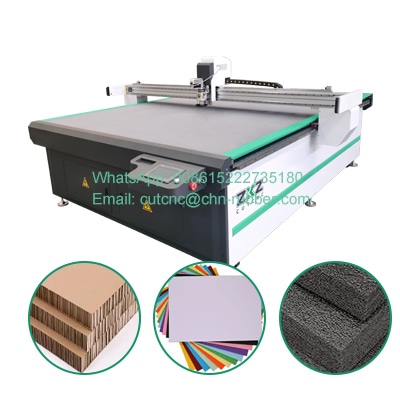

Cutting Materials

This CNC carton cutting machine is expertly tuned to handle the diverse range of substrates essential in the packaging and printing industries. Its multi-tool configuration allows for precise processing of:

1. 1. Folding Carton Boards: Including Solid Bleached Sulfate (SBS), Coated Unbleached Kraft (CUK), and various grades of cardstock used extensively for retail packaging, cosmetic boxes, and pharmaceutical cartons where V-cuts and precise creases are vital for aesthetics and function.
2. 2. Corrugated Fiberboard: Efficiently processes different flute profiles (such as E-flute, B-flute, C-flute, and double-wall combinations like BC-flute) commonly used for shipping containers, point-of-purchase (POP) displays, and protective inserts, leveraging both the cutting power and creasing/V-cutting for assembly.
3. 3. Rigid Paperboards: Materials like grey board or chipboard used in the construction of setup boxes, game boards, and luxury packaging components benefit from the clean cutting and structural grooving capabilities.
