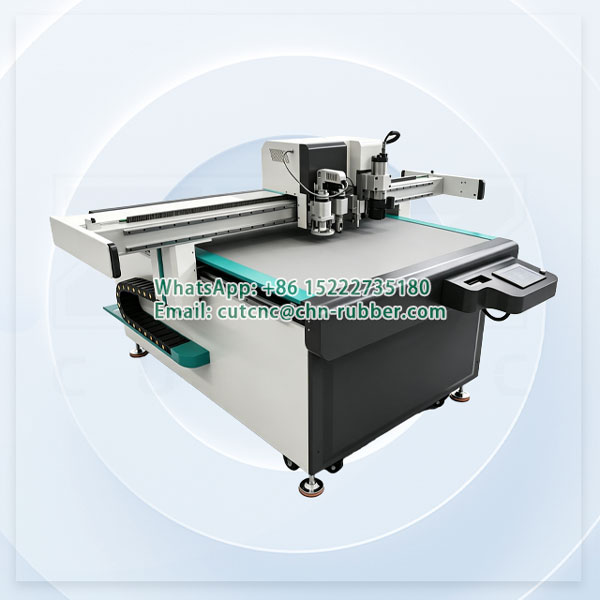

0912 Packing sample CNC cutting machine

Product ID : ZXZ-DH0912

Product Attributes :

Contact Us

Email: cutcnc@chn-rubber.com

WhatsApp: 008615222735180

Product Description

CNC Cardboard Box Maker & Corrugated Cardboard Cutter

Engineered for high-precision packaging prototyping and short-run production, this versatile cardboard box cutting machine boasts a generous 1600mm × 2500mm working area. Powered by an intelligent dual tool head system with automatic tool switching, it allows operators to mount a high-frequency oscillating knife simultaneously with a dedicated creasing wheel tool—streamlining the workflow from digital design (DXF/PLT/AI/PDF) to finished packaging without physical cutting dies.

As an industrial-grade cnc corrugated cardboard cutter, this machine features an aluminum bellows vacuum adsorption bed with zonal/follow-up suction control, ensuring rigid stability during high-speed cutting up to 1200mm/s. Integrated with ET automatic nesting software, it boosts raw material utilization by over 20%, making it an ideal cnc cardboard box maker for custom corrugated shipping boxes, POP display stands, honeycomb inserts, and heavy-duty carton packaging.

cnc cardboard box maker cnc corrugated cardboard cutter machine

Key Advantages & Configuration Highlights

Dual Tool Head & Auto Switching

Equipped with double tool holders for seamless automatic switching between oscillating cutting blades and creasing wheels, eliminating tool-change delays.

High-Frequency Oscillating Knife

Powerful 100W/350W vibration motor delivers clean, burr-free cuts across single, double, and triple-wall corrugated boards up to 50mm thickness.

Dedicated Creasing Wheel Tool

Presses sharp, crisp fold lines into paperboard, corrugated box blanks, and honeycomb boards without cracking or tearing the surface paper.

Vacuum Adsorption Bed

Heavy-duty aluminum vacuum platform with zonal and follow-up suction fixes large cardboard sheets firmly during high-speed processing.

Red Light Position Preview

Integrated red light laser pointer previews the cutting layout directly onto the cardboard surface to check alignment and prevent operator misstep.

ET Intelligent Auto-Nesting

Advanced nesting software optimizes box design layouts automatically, saving over 20% in raw cardboard material compared to manual arrangement.

CNC Cardboard Box Cutting Machine Configurations

Technical Feature	Machine Specification Values
Working Area (L × W)	900 mm × 1200 mm
Cutting Tools Included	100W / 350W Oscillating Knife / Creasing Tool / Half-Cut Tool Module
Max Cutting Speed	Up to 1200 mm/s (Varies according to material type and density)
Cutting Accuracy & Tolerance	± 0.1 mm
Cutting & Feeding Thickness	Max Cutting Thickness: ≤ 50 mm \| Feeding Thickness Capacity: 80 mm
Countertop & Fixation Method	Fixed countertop with aluminum bellows vacuum adsorption (Zone & Follow-up suction)
Drive System & Motors	DORNA / Delta Servo Motor + Precision Linear Guide Rails & Rack Drive
Positioning & Fault Detection	Red light preview function + Automatic electrical fault self-check upon power-on
Compatible Software & Formats	CUT, LaserCAD, ET Super Nesting Module, JDsoft \| Vector Formats: DXF, PLT, PDF, AI
Data Transmission Interface	High-speed Ethernet Connection

Wide Range of Packaging Materials Supported

Designed as a multi-purpose cardboard box cutting machine, this CNC platform processes a wide spectrum of packaging media, soft foams, and technical boards:

Corrugated Cardboard Single-wall, double-wall, and triple-wall corrugated sheets for shipping boxes, POP displays, and structural packaging.

Honeycomb & Paperboard Lightweight yet rigid structural honeycomb panels used for heavy-duty box lining, void fills, and display boards.

Greyboard & Chipboard High-density grey cardboard utilized for luxury gift boxes, rigid box structures, bookbinding, and backing boards.

Cardstock & Folding Carton Paper materials engineered for retail packaging, paper folders, custom cards, and lightweight display boxes.

Foam Board / KT Board Paper-faced foam core boards widely applied in presentation boards, POS displays, and architectural model making.

EVA Foam & PE Foam Inserts Soft and medium-density cushioning foams used for protective box inserts, custom tool trays, and sealing gaskets.

PVC Foam Board & Thin Plastics Rigid Chevron/PVC foam sheets, Sintra board, and PP polypropylene hollow sheets for signboards and plastic boxes.

Kraft Paper & Rubber Gaskets Heavyweight Kraft wrapping paper, soft rubber sheets, and non-asbestos gasket media (up to thickness limit).

Note: Maximum cutting thickness and edge quality depend on material density, composition, and specific tool selection. Sample test cuts are recommended prior to full production runs.

REQUEST A FACTORY QUOTE FOR CNC CARDBOARD BOX MAKERS

Contact our engineering team to discuss custom table dimensions, oscillating knife choices, or request free sample cutting for your cardboard and corrugated box designs.

WhatsApp: +86 15222735180 Email: cutcnc@chn-rubber.com
